• Implementation of an Energy Management System (EnMS) in accordance with the ISO 50001 Standard

    ISO 50001 certificate for EMD

    ISO 50001 Certificate for EMD

    Since December 2011, we have established and implemented an EnMS in accordance with the ISO 50001 standard on our residential building design. Through the implementation of the EnMS, a baseline and an Energy Performance Indicator (EnPI) for energy consumption of building services installed in the communal areas of the public housing blocks were initially set at 30kWh/m² annually, and applied to all our new projects for comparison, and for design adjustment to achieve the target performance if necessary. This EnPI was tightened from 27kWh/m² to 24kWh/m² in 2016 and reduced to 23.5 kWh/m² in 2020 to further enhance the energy performance of our designs.

    The ISO 50001 EnMS was built on a Plan-Do-Check-Act management model which focused on energy efficiency, use and consumption in communal building services installations of domestic public housing blocks. In June 2012, we obtained the ISO 50001 certification on residential building design. With the promulgation of the 2018 edition of ISO 50001 in August 2018, we targeted to transit to this latest edition by 2021.

    For the existing estates, Kwai Shing West Estate was the first residential estate and the first public rental housing (PRH) estate in Hong Kong granted with ISO 50001 certification in June 2013. With the successful experiences gained at Kwai Shing West Estate, we extended the certification to cover all existing PRH domestic blocks by April 2015 in two phases.

    The Phase One certification covering the domestic blocks in 92 PRH estates was obtained in August 2014 and the Phase Two extended certification to cover the domestic blocks in all existing estates has been obtained in April 2015. Re-certification of all existing PRH estates was obtained in June 2019 and valid until August 2021.

    ISO 50001 certificate for EMD

    ISO 50001 Certificate for EMD

  • Optimisation on Illumination Level of Domestic Blocks

    In response to the requirements laid down in the Design Manual: Barrier Free Access 2008 promulgated by the Building Department, the illumination standard of public areas has been significantly increased to cater for the needs of persons with special needs such as those having impaired vision. To achieve the new illumination standard for domestic blocks without undue increase on energy consumption, a two level lighting control system has been adopted in new design for domestic blocks since December 2008. This system enables users raising the lighting level when needed. The illumination levels for public areas are as follows:



    Normal Mode

    Triggered Mode

    for typical lobby

    50 lux

    85 lux

    for typical corridor

    30 lux

    85 lux

    for staircase

    30 lux

    85 lux

    for ground floor lift lobby

    120 lux

    NA

    for lift car

    150 lux

    NA

    Raise the lighting level of public areas

    Raise the lighting level of public areas

    Raise the lighting level of public areas

    Raise the lighting level of public areas

    Raise the lighting level of public areas

  • Adopting EMSD's Code of Practice for Energy Efficiency of Building Services Installation

    The lighting, electrical, air-conditioning and lift & escalator of new buildings have been adopting the design in compliance with the requirements of Building Energy Codes issued by EMSD. Since August 2015, HA have received 140 Certificates of Compliance Registration under the Building Energy Efficiency Ordinance from EMSD.

    'Hong Kong Energy Efficiency Registration Scheme' Energy Certificates

    'Hong Kong Energy Efficiency Registration Scheme' Energy Certificates

  • Photocell Sensor Control for Lights in Public Areas of New Domestic Blocks

    Photocell sensor controls for lights

    Photocell sensor controls for lights

    Photocell sensor controls for lights are installed in areas with natural light, such as areas near the windows in communal areas, to switch off some lights to save energy when the illumination level is adequate.

  • The Use of Electronic Ballast to replace Electromagnetic Ballast

    For fluorescent type lighting fittings, about 20% of electrical energy could be saved if electronic ballast is used instead of electromagnetic ballast. In view of this, since 2003, we have widely adopted the use of electronic ballast. At present, all fluorescent type lighting fittings are equipped with electronic ballasts.

    Starting from 2012/13, we have launched a 42-month programme of replacing existing light fittings equipped with electromagnetic ballast by energy-saving electronic ballast in communal areas of all our existing estates, covering around 960 domestic blocks. The replacement work for all 960 domestic blocks have been completed in September 2015.

  • Wider Use of LED Lighting

    Since early 2016, we have adopted LED bulkheads as standard luminaires for communal areas of domestic blocks in all new works projects under planning or design. Starting from 2019/20, LED bulkheads have been adopted in communal areas of existing PRH blocks during the breakdown maintenance. In addition, LED Exit Signs and Directional Signs have been adopted in new developments tendered out in or after 2019.

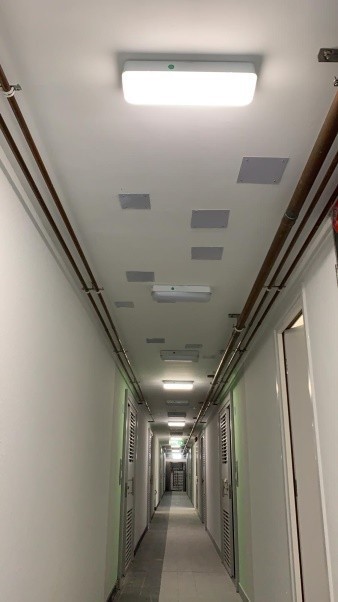

    LED bulkheads

    LED bulkheads

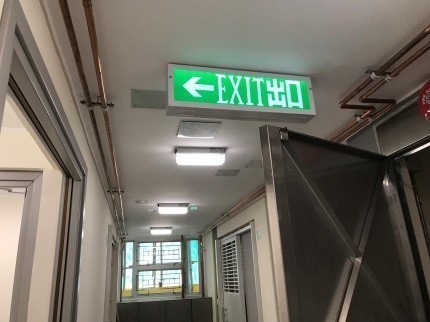

    LED Exit Sign

    LED Exit Sign

  • Variable Speed Drive Control for the Fresh Water Booster Pumping System

    We have adopted variable speed drive control for the fresh water booster pumping system in all new projects. The system has been used together with smaller stainless steel pneumatic pressure vessels and stamped stainless steel multi-stage pumps to achieve higher energy efficiency and occupy lesser plant room space.

  • Hybrid Ventilation / Free Cooling System

    Hybrid Ventilation / Free Cooling System has been introduced at some new shopping centres. Combining the use of natural ventilation, air-conditioning and mechanical ventilation system as well as switching between operation modes to suit users' needs, the new system can reduce energy consumption and carbon emissions from the air-conditioning and mechanical ventilation system. The system could be adopted in appropriate projects in accordance with relevant guidelines.

  • District Cooling System

    In the PRH development at Kai Ching Estate and Tak Long Estate, we have adopted the centralised and energy-efficient chilled water supply system, the District Cooling System (DCS), implemented by the Electrical and Mechanical Services Department to provide chilled water through underground chilled water pipe network to the air-conditioning systems of the non-domestic facilities including shops, kindergarten and estate management offices. Compared with the conventional air-cooled chiller system, the DCS is able to save energy up to 35%.

  • Trial Use of Energy-saving Technologies and Initiatives for New Lift Installations

    We have adopted a number of energy-saving technologies and initiatives for lift installations. These include the use of permanent magnet synchronous motor machines in lift installations, the provision of regenerative power for lift motors of 8 kW or above and the use of gearless type lift drives to reduce energy consumption. In addition, to save space, more compact and less heavy lifts without machine rooms have been provided for lift towers and low-rise buildings.

  • Smart Meter Monitoring and Energy Information Display System

    We have adopted Smart Meter Monitoring and Energy Information Display System in the ground floor lobbies of the domestic blocks in new estates. The system displays electricity, gas and water consumption data on a regular basis. The system facilitates comparison of energy consumption among blocks of the same estate with a view to raising the awareness of residents to save energy.

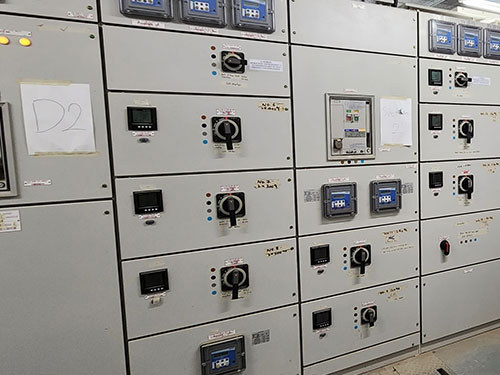

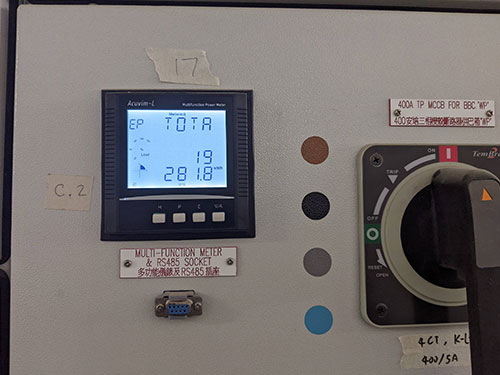

    Smart Meter

    Smart Meter

    Smart Meter

    Smart Meter

    Smart Meter

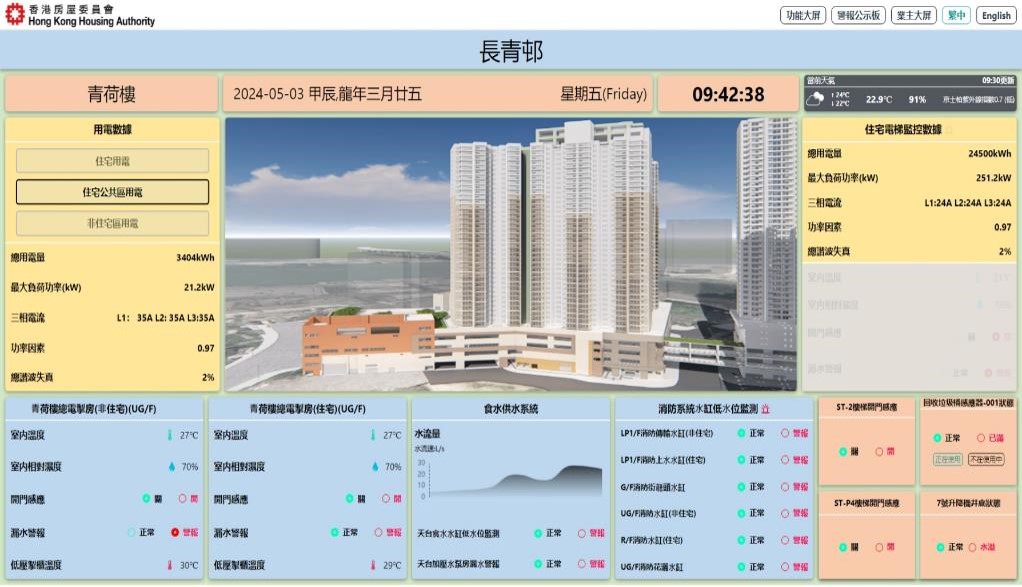

    Display of the smart meter monitoring system at ground floor lobby of Tak Long Estate

    Display of the smart meter monitoring system at ground floor lobby of Tak Long Estate

    Display of the smart meter monitoring system at ground floor lobby of Tak Long Estate

    Display of the smart meter monitoring system at ground floor lobby of Tak Long Estate

    Display of the smart meter monitoring system at ground floor lobby of Tak Long Estate

  • Renewable Energy Installation

    In order to reduce carbon emission, and align with the Government's policy, the Hong Kong Housing Authority (HA) has integrated various renewable energy applications into the design of public housing estates since 2003. These include grid-connected photovoltaic (PV) systems, building integrated photovoltaics (BIPV), etc.

    • PV Systems

      A pilot grid-connected mono-crystalline silicon PV system at Lam Tin Estate has been in operation since August 2009. It could feed in certain amount of renewable electricity to the electricity grid.

      In view of the satisfactory performance of the pilot PV system, the HA decided in 2011 to implement grid-connected PV system in all new public rental housing developments to feed in renewable electricity equivalent to about 1.5% to 2.5% of the electricity demand of the building communal area of each domestic block to the electricity grid as far as practicable. Meanwhile, we will continue the search and piloting of other renewable energy technologies for application in public rental housing estates.

      Grid-connected photovoltaic systems

      Grid-connected photovoltaic systems
